peakfit.c File Reference

---

Detailed Description

Author:

Hal Finkel

Peak identification and fitting

#include <math.h>
#include <stdlib.h>
#include <string.h>
#include <stdio.h>
#include <ctype.h>
#include <gsl/gsl_statistics.h>
#include <gsl/gsl_fit.h>
#include <gsl/gsl_vector.h>
#include <gsl/gsl_blas.h>
#include <gsl/gsl_multifit_nlin.h>
#include "common.h"

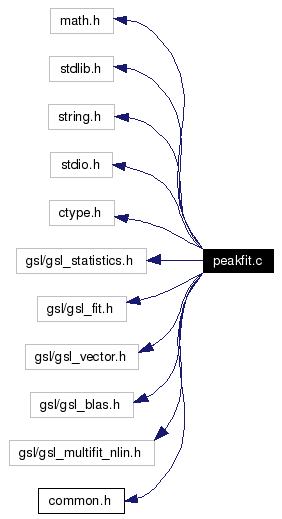

Include dependency graph for peakfit.c:

Data Structures
struct	bg_poly_data
	Data on the background for fitting. More...
struct	peak_pearson7_data
	Data on a peak for fitting. More...
Defines
#define	MAXITER   100000
	The maximum number of iterations for fitting peaks and background.
#define	MINBGPTS   3
	Mininum number of background points per side.
#define	BGWIDTH   2
	The number of peak widths to look for background if possible.
#define	SEARCHSTEP   0.1
	Search step for peak bounds.
Functions
void	pf_prunepeaks (struct pf_data *d)
	Prune peaks without reasonable fits.
void	pf_fitpeaks (struct pf_data *d)
	Fit peaks in the data set.
double	pf_bgfunc (struct pf_data *d, int peak, double x)
	Evaluate the background function for a given peak.
double	pf_peakfunc (struct pf_data *d, int peak, double x)
	Evaluate the peak fit function for a given peak.
double	pf_fitfunc (struct pf_data *d, int peak, double x)
	Evaluate the total fit function for a given peak.

---

Define Documentation

#define BGWIDTH   2

The number of peak widths to look for background if possible.

#define MAXITER   100000

The maximum number of iterations for fitting peaks and background.

#define MINBGPTS   3

Mininum number of background points per side. Total from both sides needs to be at least the number of fit parameters

#define SEARCHSTEP   0.1

Search step for peak bounds.

---

Function Documentation

double pf_bgfunc (  struct pf_data *  d, int  peak, double  x )

Evaluate the background function for a given peak. Parameters: [in]  d  The data set [in]  peak  The peak for which to evalutate the background function [in]  x  The value at which to evaluate the function Returns: The value of the function

double pf_fitfunc (  struct pf_data *  d, int  peak, double  x )

Evaluate the total fit function for a given peak. Parameters: [in]  d  The data set [in]  peak  The peak for which to evalutate the total fit function [in]  x  The value at which to evaluate the function Returns: The value of the function

Here is the call graph for this function:

void pf_fitpeaks (  struct pf_data *  d  )

Fit peaks in the data set. Parameters: [in,out]  d  The data set

double pf_peakfunc (  struct pf_data *  d, int  peak, double  x )

Evaluate the peak fit function for a given peak. Parameters: [in]  d  The data set [in]  peak  The peak for which to evalutate the peak fit function [in]  x  The value at which to evaluate the function Returns: The value of the function

void pf_prunepeaks (  struct pf_data *  d  )

Prune peaks without reasonable fits. Parameters: [in,out]  d  The data set

---
