common.h File Reference

Detailed Description

Author:: Hal Finkel

Main peakfinder program

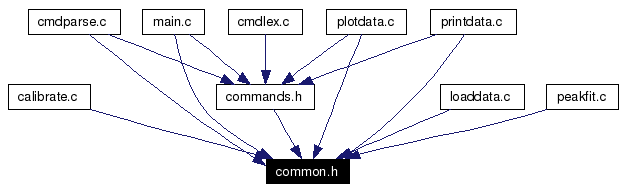

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct pf_peak_bg

Peak background fit. More...

struct pf_peak_fit

Peak fit. More...

struct pf_peak

Peak data. More...

struct pf_cal_fit

Calibration fit. More...

struct pf_cal_pt

Calibration point. More...

struct pf_cal_pts

Calibration points. More...

struct pf_data

Data set. More...

struct pf_plot_params

Plot parameters. More...

Defines

#define NCHAN   4096

The maximum number of channels in the data set.

#define MAXCALPTS   1024

The maximum number of calibration points.

#define MAXUNIT   256

The maximum length of a calibration unit string.

Enumerations

enum pf_peak_sort { sort_number, sort_height, sort_area }

Peak sort type. More...

Functions

int pf_parse_command (char *command)

Parse a command string.

int pf_loaddata (char *fn, struct pf_data *d)

Load data from a file.

double pf_chanwindowavg (double *data, int ds, int ci, int ac)

Compute the average counts per bin over some window.

void pf_plotdata (struct pf_data *d, struct pf_plot_params *p, struct pf_cal_fit *cal)

Plot data.

void pf_plotpeak (struct pf_data *d, struct pf_plot_params *p, struct pf_cal_fit *cal)

Plot a given peak.

int pf_printdata (struct pf_data *d, char *fn, int norm)

Print the data set.

int pf_printpeaks (struct pf_data *d, char *fn, enum pf_peak_sort srt)

Print the peaks.

int pf_printpeak (struct pf_data *d, struct pf_cal_fit *cal, int peak, char *fn)

Print data about a given peak.

int pf_printcal (struct pf_data *d, struct pf_cal_fit *f, char *fn)

Print data about the calibration fit.

void pf_fitpeaks (struct pf_data *d)

Fit peaks in the data set.

void pf_prunepeaks (struct pf_data *d)

Prune peaks without reasonable fits.

double pf_bgfunc (struct pf_data *d, int peak, double x)

Evaluate the background function for a given peak.

double pf_peakfunc (struct pf_data *d, int peak, double x)

Evaluate the peak fit function for a given peak.

double pf_fitfunc (struct pf_data *d, int peak, double x)

Evaluate the total fit function for a given peak.

int pf_calibrate (struct pf_data *d, struct pf_cal_fit *f, char *fn)

Calibrate input using known data points.

double pf_calfunc (struct pf_cal_fit *f, double ch)

Evaluate the calibration fit function for a given peak.

Define Documentation

#define MAXCALPTS 1024

The maximum number of calibration points.

#define MAXUNIT 256

The maximum length of a calibration unit string.

#define NCHAN 4096

The maximum number of channels in the data set.

Enumeration Type Documentation

enum pf_peak_sort

Peak sort type.

Enumeration values:

sort_number Sort by peak number.

sort_height Sort by peak height.

sort_area Sort by peak area.

Function Documentation

double pf_bgfunc ( struct pf_data * d,

int peak,

double x

)

Evaluate the background function for a given peak.

Parameters:

[in] d The data set

[in] peak The peak for which to evalutate the background function

[in] x The value at which to evaluate the function

Returns:
The value of the function

double pf_calfunc ( struct pf_cal_fit * f,

double ch

)

Evaluate the calibration fit function for a given peak.

Parameters:

[in] f The calibration fit

[in] ch The value at which to evaluate the function

Returns:
The value of the function

int pf_calibrate ( struct pf_data * d,

struct pf_cal_fit * f,

char * fn

)

Calibrate input using known data points.

Parameters:

[in] d The data set

[out] f The calibration fit

[in] fn The file containing the calibration points

Returns:
Boolean success flag

double pf_chanwindowavg ( double * data,

int ds,

int ci,

int ac

)

Compute the average counts per bin over some window.

Parameters:

[in] data The data array

[in] ds The size of the data array

[in] ci The center of the window

[in] ac The size of the window

Returns:
The average over the window

double pf_fitfunc ( struct pf_data * d,

int peak,

double x

)

Evaluate the total fit function for a given peak.

Parameters:

[in] d The data set

[in] peak The peak for which to evalutate the total fit function

[in] x The value at which to evaluate the function

Returns:
The value of the function
